Datacenter Edge

Create Appstack Site

In Cloud and Edge Sites, navigate to Manage ‣ Site Management ‣ App Stack Sites and click Add App Stack Site

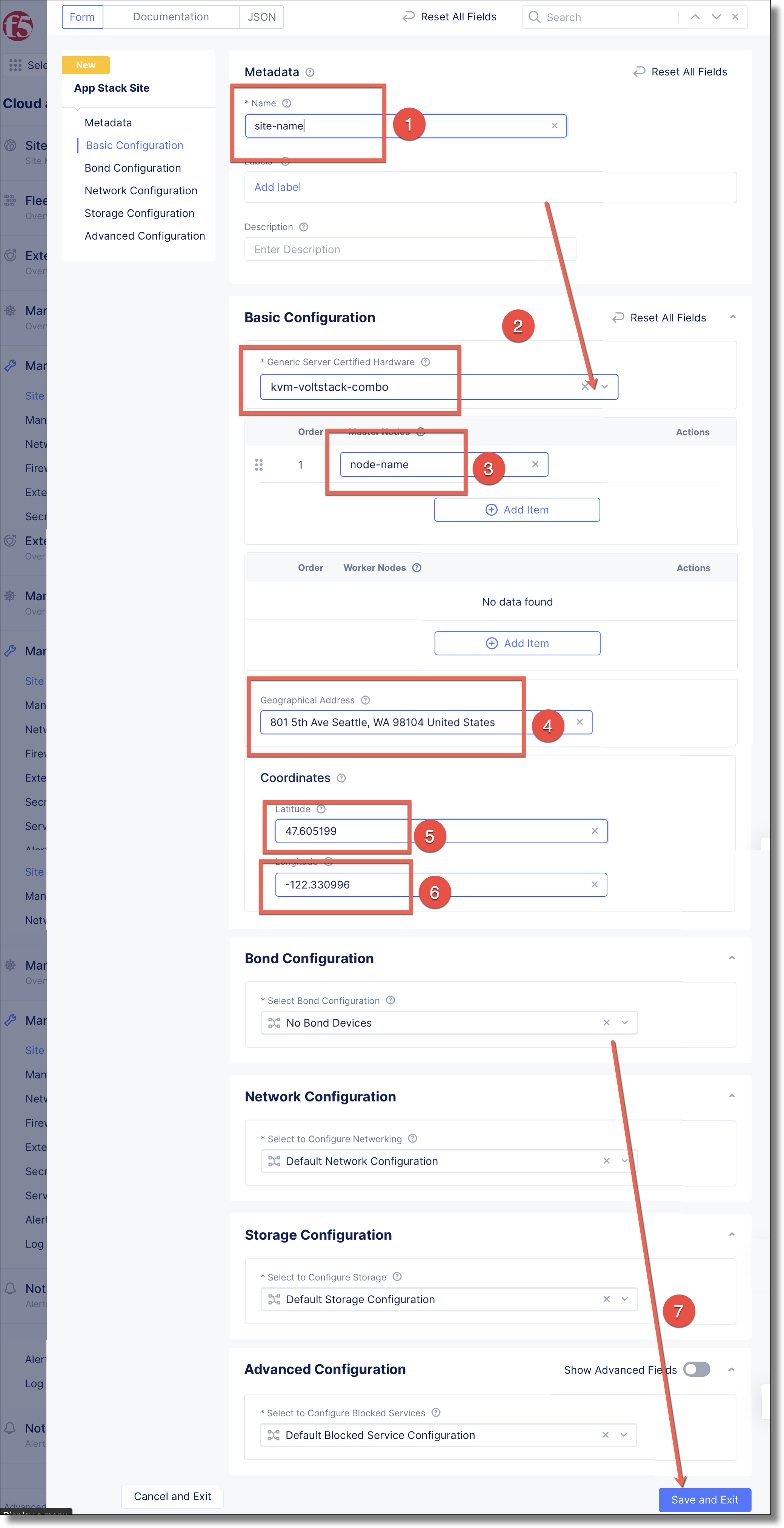

Fill in the form using the following values, and click
1. Name: Provide a unique <site-name>
2. Basic Configuration ‣ Generic Server Certified Hardware: select kvm-voltstack-combo.
3. Basic Configuration ‣ Order Master Node: enter a unique <node-name>.
4. Basic Configuration ‣ Geographic Address: enter a <Geographic Address>.
5. Basic Configuration ‣ Coordinates ‣ Latitude: enter site coordinates <47.605199>.
6. Basic Configuration ‣ Coordinates ‣ Longitude: enter site coordinates <-122.330996>.
The site appears in the list and indicates Waiting for Registration

Replace highlighted values in appstack_site.json

{
  "metadata": {
    "name": "<site-name>",
    "namespace": "system",
    "labels": {
      "ves.io/provider": "ves-io-VMWARE-K8S",
      "ves.io/siteName": "k8s_cluster"
    },
    "annotations": {},
    "disable": false
  },
  "spec": {
    "volterra_certified_hw": "kvm-voltstack-combo",
    "master_nodes": [
      "<node-name>"
    ],
    "no_bond_devices": {},
    "default_network_config": {},
    "default_storage_config": {},
    "disable_gpu": {},
    "address": "<address>",
    "coordinates": {
      "latitude": "<latitude>",
      "longitude": "<longitude>"
    },
    "k8s_cluster": {
      "namespace": "system",
      "name": "<site-name>",
      "kind": "k8s_cluster"
    },
    "logs_streaming_disabled": {},
    "deny_all_usb": {},
    "disable_vm": {},
    "default_blocked_services": {},
    "sw": {
      "default_sw_version": {}
    },
    "os": {
      "default_os_version": {}
    }
  }
}

$ vesctl configuration apply voltstack_site -i appstack_site.json
Created

vesctl command output

metadata:
  annotations: {}
  description: ""
  disable: false
  labels: {}
  name: <site-name>
  namespace: system
spec:
  address: 801 5th Ave Seattle, WA 98104 United States
  coordinates:
    latitude: 47.605198
    longitude: -122.33099
  default_blocked_services: {}
  default_network_config: {}
  default_storage_config: {}
  deny_all_usb: {}
  disable_gpu: {}
  disable_vm: {}
  k8s_cluster:
    name: <site-name>
    namespace: system
    tenant: <tenant-name>
  logs_streaming_disabled: {}
  master_nodes:
  - <node-name>
  no_bond_devices: {}
  offline_survivability_mode: null
  operating_system_version: ""
  site_local_control_plane: null
  site_state: ONLINE
  volterra_certified_hw: kvm-voltstack-combo
  volterra_software_version: ""
  worker_nodes: []
system_metadata:
  creation_timestamp: "2022-10-08T01:46:33.251494607Z"
  creator_class: prism
  creator_id: email@example.com
  deletion_timestamp: null
  finalizers: []
  initializers: null
  labels: {}
  modification_timestamp: null
  object_index: 0
  owner_view: null
  tenant: <tenant-name>
  uid: 64aa1918-a401-4e4d-963d-4f7dfbd41c3f

Execute the following command to see the appstack object

$ vesctl configuration list voltstack_site site-name -n system
+-----------+-----------+--------+
| NAMESPACE |   NAME    | LABELS |
+-----------+-----------+--------+
| system    | site-name | <None> |
+-----------+-----------+--------+

Execute the following command to see the appstack site object config in json format

$ vesctl configuration get voltstack_site site-name -n system --outfmt json

Notice the site is Waiting for Registration

{
  "object": null,
  "create_form": null,
  "replace_form": null,
  "resource_version": "516963783",
  "metadata": {
    "name": "<site-name>",
    "namespace": "system",
    "labels": {
    },
    "annotations": {
    },
    "description": "",
    "disable": false
  },
  "system_metadata": {
    "uid": "ac77a666-da1c-4a10-81d0-4029a4890550",
    "creation_timestamp": "2022-10-09T18:47:47.509505535Z",
    "deletion_timestamp": null,
    "modification_timestamp": null,
    "initializers": null,
    "finalizers": [
    ],
    "tenant": "<tenant-id>",
    "creator_class": "prism",
    "creator_id": "email@example.com",
    "object_index": 0,
    "owner_view": null,
    "labels": {
    }
  },
  "spec": {
    "volterra_certified_hw": "kvm-voltstack-combo",
    "master_nodes": [
      "<node-name>"
    ],
    "worker_nodes": [
    ],
    "volterra_software_version": "",
    "operating_system_version": "",
    "no_bond_devices": {

    },
    "default_network_config": {

    },
    "default_storage_config": {

    },
    "disable_gpu": {

    },
    "address": "801 5th Ave Seattle, WA 98104 United States",
    "coordinates": {
      "latitude": 47.605198,
      "longitude": -122.33099
    },
    "no_k8s_cluster": {

    },
    "logs_streaming_disabled": {

    },
    "deny_all_usb": {

    },
    "site_state": "WAITING_FOR_REGISTRATION",
    "disable_vm": {

    },
    "default_blocked_services": {

    },
    "site_local_control_plane": null,
    "offline_survivability_mode": null
  },
  "status": [
  ],
  "referring_objects": [
  ]
}
